The QC ES-6000 uses a unique, patented design that uses an acoustical duct attached to an R5 damper box. The result is almost zero noise vibration and whisper quiet operation. As well, the QC ES-6000 uses the innovative ECM energy saver motor that uses hardly any power while moving extreme amounts of air. The QuietCool QC ES-6000 is designed to be installed centrally in large homes. Simply open a window when you get home from work, flip on the QuietCool and enjoy a peaceful and cool evening relaxing.

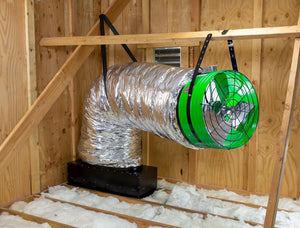

The motor on this whole house fan hangs from the rafters in the attic with a small ceiling cut-out for the air intake grille (14 in. x 36 in. ceiling cut-out). This whole house fan will cover up to 2790 square feet based on the recommendation of moving 2 CFM per square foot.
Installation is simple with no framing or joist-cutting required (fits 16 or 24 on-center). Generally speaking a basic installation should only take an hour or two. The R5 damper box at the ceiling level helps insulate the home from the attic during the cold times of the year when the fan is off. If two-speed operation is required, the fan does need to be hardwired.
- UL Listed components
- Horizontal or vertical mount decorative grill included
- Available optional double stack switch for multiple fan operation from one location
- Available optional remote control
- 10 year warranty
- All parts manufactured in the US
- The ES-4700 is capable of operating in a two-speed mode. This required a hardwired installation
|Motor Voltage:||120 VAC, 60Hz|
|Energy Use:||455 Watts High/ 112 Watts Low|
|Air Flow:||5576 CFM High/ 3417 CFM Low|
|HVI-916 Airflow (for CA Title 24 New Construction):||4040 CFM|
|Duct Length:||9 feet|
|Motor Head Diameter:||22 1/2″|
|Motor Head Length:||13 1/2″|
|Dampers:||Barometric Pressurized R5 Dampers|
|Ceiling Rough Opening:||14 1/4″ x 36 1/4″|
|Removable Grill Outside Dimension:||16″ x 38″|
|Controls:||Remote control or hard wire capabilities|
Ventilates up to 2790 square feet
Requires 7.44 square feet of net attic venting. Fits 16 or 24 inch on center joists.
