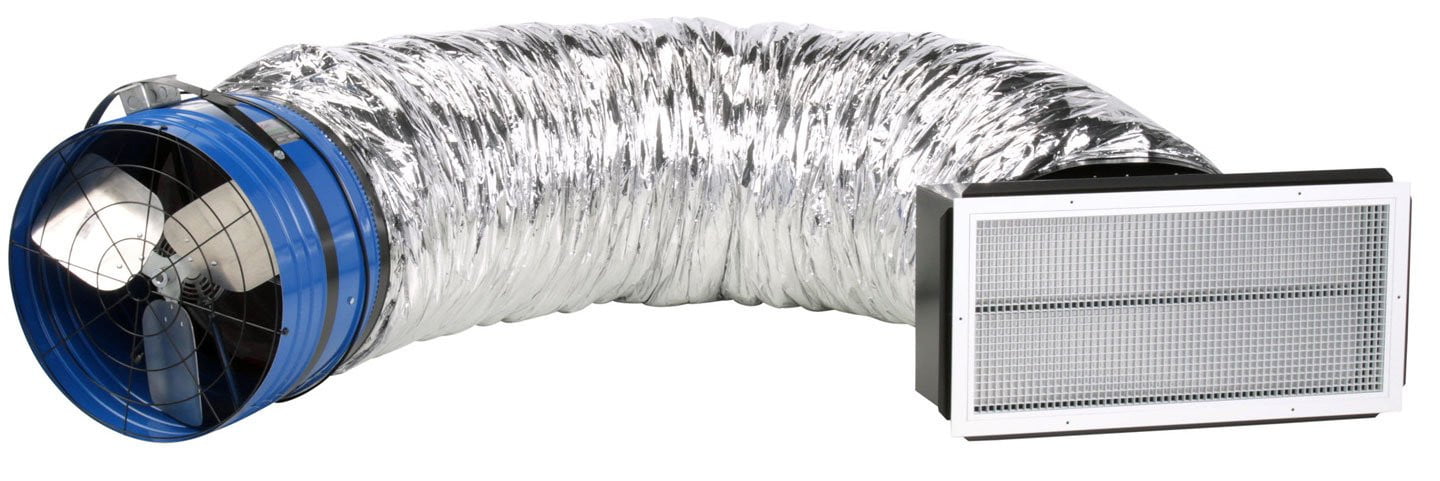

Quiet Cool CL-6000 5665 CFM Whole House Fan
The Original Quiet Cool CL-6000 is a ducted inline whole house fan that moves 5665 cubic feet of air per minute to increase airflow and cool your home in minutes — at a fraction of the cost of air conditioning.

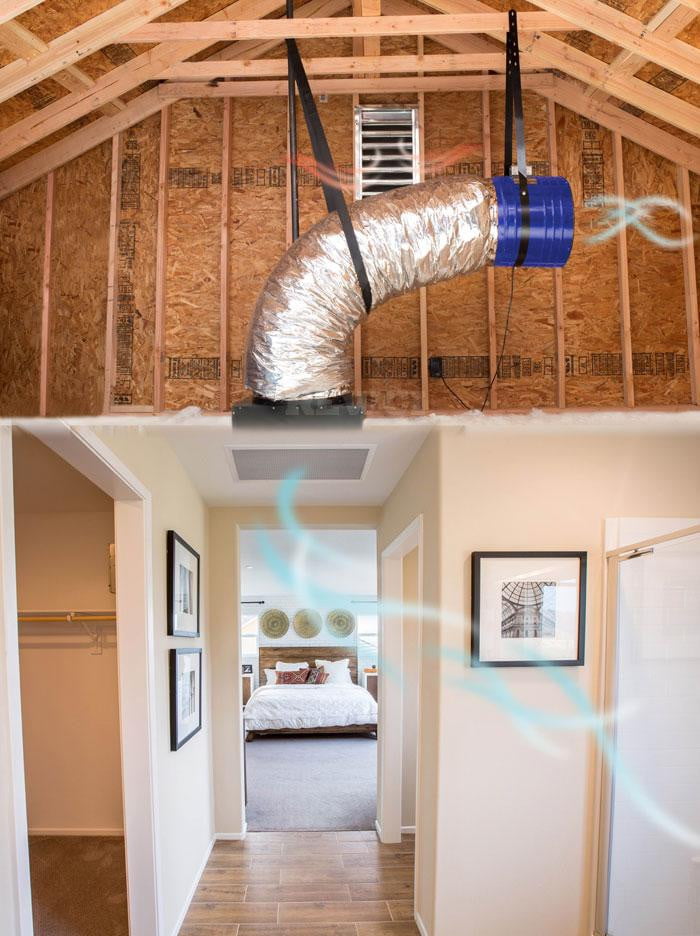

This house fan can quickly and easily be installed almost anywhere in a ceiling or vertical wall. It comes with a built-in back draft damper to prevent energy loss when the unit is not in use.
You can control it easily with a “set it and forget it” 8-hour on/off timer, or a wireless remote control
QUIET COOL BENEFITS
- Draws fresh cool air in and pushes stale hot air out to naturally to improve the air quality in your home
- Reduces AC usage to cut your utility bills by 50-90%
- Nearly silent operation; suspension installation and acoustic insulated flexible ducting keeps vibration and noise to a minimum
- Compact and easy to install
- Manufactured in the US
Questions? – Toll Free 1.888.845.6597 or Direct 1.661.775.5979
Installers/Contractors Please Call For More Information about how the QuietCool fans can increase your sales to your own customers.
More Info
- Recommended Sizing: 2-3 CFM per sq. ft. of area to be cooled
- UL Listed components
- Easy, plug-in installation, no carpentry required
- Available optional switch for multiple fan operation from one location
- Available optional electronic 8 hour timer – set and forget operation
- Available optional remote control
- 10 year warranty
- All parts manufactured in the US
Download the Installation/User Manual
Specifications
| Motor Voltage: | 120 VAC, 60Hz |
| Energy Use: | 769 Watts High/560 Watts Low |
| Air Flow: | 5665 CFM High/4289 CFM Low |
| HVI-916 Airflow (for CA Title 24 New Construction): | 4160 CFM |
| Required Venting: | 7.56 square feet net |
| Covers | Up to 2840 square feet |
| Speeds: | 2 |
| Sound Level dBA: | 51.1 High/44.1 Low |
| Duct Diameter: | 22″ |
| Duct Length: | 9 feet |
| Motor Head Diameter: | 22 1/2″ |
| Motor Head Length: | 13 1/2″ |
| Dampers: | Barometric Pressurized R5 Dampers |
| Ceiling Rough Opening: | 14 1/4″ x 36 1/4″ |
| Removable Grill Outside Dimension: | 16″ x 38″ |
| Controls: | Remote control or hard wire capabilities |
Requires 7.56 square feet of net attic venting. Covers up to 2833 square feet.
