The QC CL-4700 is a ducted whole house fan that moves 4415 cubic feet of air per minute on high.

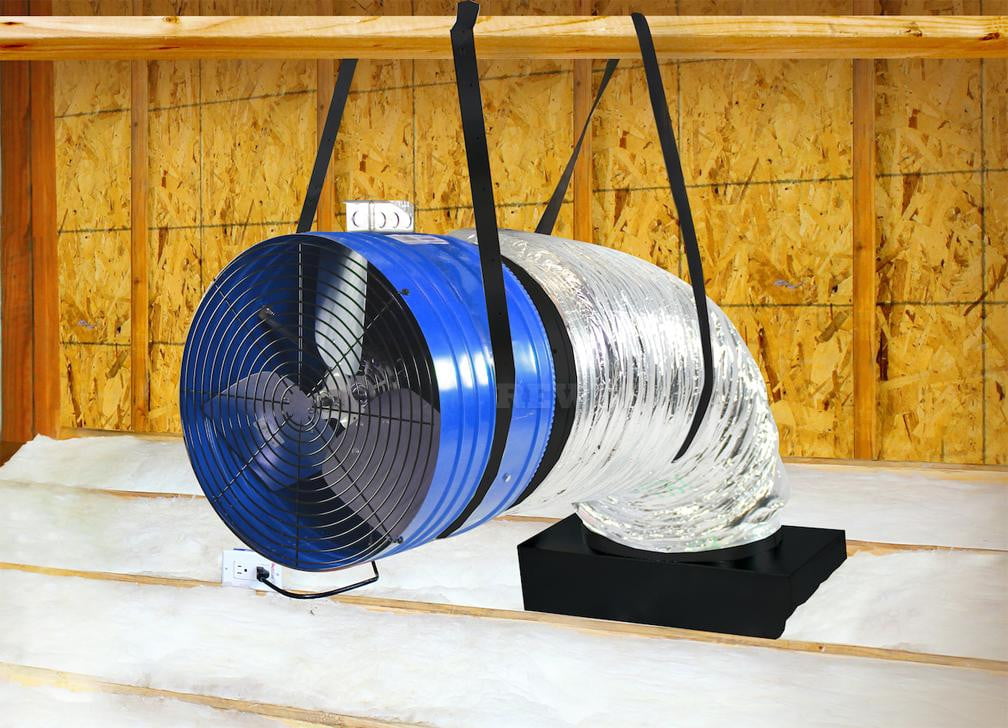

The primary benefit of the QC CL-4700 is its quiet operation. This whole house fan is installed suspended from the attic rafters which helps cut down on the noise. The included acoustical insulated flex duct also helps keep the noise from the fan you hear in your house to a minimum.
Installing the QC CL-4700 whole house fan is also very easy. Using the template which is included in the box you cut a space for the grill, which can use be mounted vertically or horizontally. The included line cord makes for easy plug-in operation. The built-in gravity damper prevents air from entering your home.
Control Options: Off the shelf, the QC CL-4700 comes equipped with a standard 120 VAC line cord. This will allow the fan to run at full power either via optional remote kit, or standard on/off switch.
The QC CL-4700 is capable of operating in a two speed mode, this requires a hardwired installation as well as a 3-way wall switch. For specific wiring information, see the Quiet Cool CL-4700 installation manual
Please Call Us With Any Questions– Toll Free At 1.888.845.6597 or Direct At 1.661.775.5979
Installers/Contractors Please Call For More Information about how the QuietCool fans can increase your sales to your own customers
- Whisper quiet operation
- Cools your home and attic
- Reduce A/C costs
- Easy to install
- Two speeds
- Built in damper – R 5 insulated
- 10 year warranty
- Backed By Our 60 Day Money Back Guarantee
Download the Quiet Cool CL-4700 Installation/User Manual
Listen to the CL4700 Run
|Motor Voltage:||120 VAC, 60Hz|
|Energy Use:||551 Watts High/415 Watts Low|
|Air Flow:||4415 CFM High/3402 CFM Low|
|HVI-916 Airflow (for CA Title 24 New Construction):||3230 CFM|
|Sound Level dBA:||49.4 High/43.2 Low|
|Power Cord Length:||20′|
|Duct Length:||9 feet|
|Motor Head Diameter:||18 1/2″|
|Motor Head Length:||13 1/2″|
|Dampers:||Barometric Pressurized R5 Dampers|
|Ceiling Rough Opening:||14 1/4″ x 30 1/4″|
|Ceiling Grill Outside Dimension:||16″ x 32″|
|Controls:||Remote control or hard wire capabilities|
|Intake Grill Color:||White|
Covers up to 2210 square feet
Minimum suggested attic venting is 5.89 square feet net free area
Listen to the CL-4700 Running
