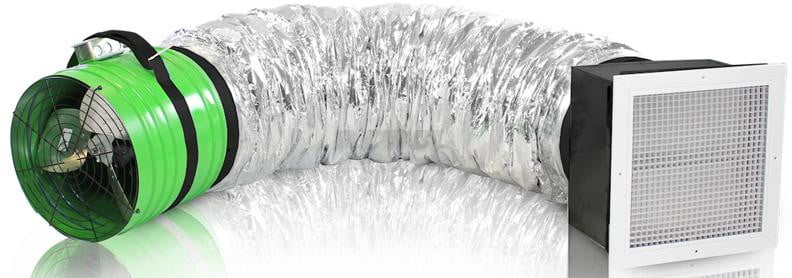

Quiet Cool ES1500 Whole House Fan
The Energy Saver 1500, our super energy efficient Quiet Cool whole house fan moves 1434 cubic feet of air per minute while drawing only 64.5 watts of power. A California Energy Commission winner, this whole house ventilator draws cool air in and pushes hot air out to cool a room in minutes.

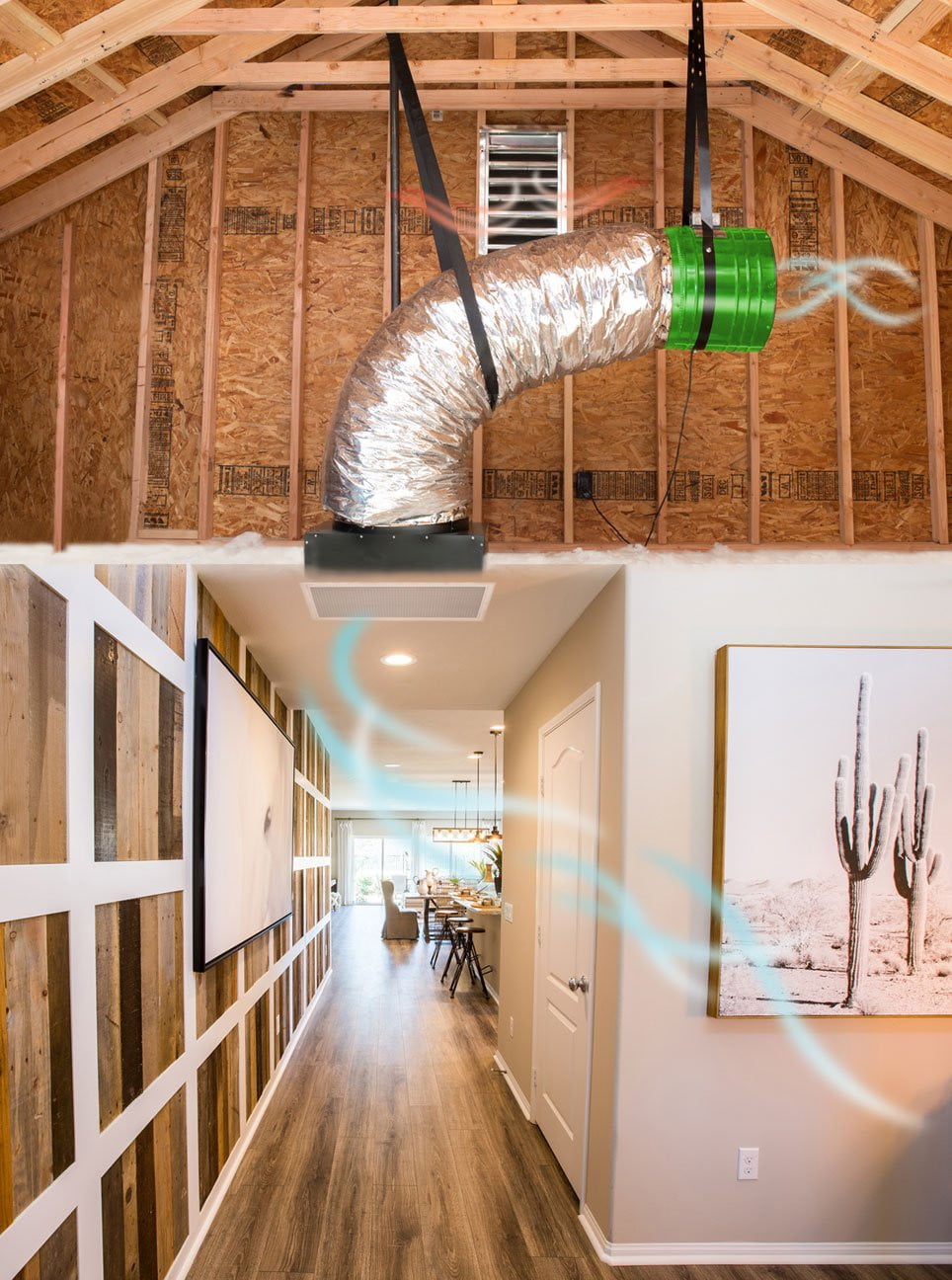

Ideal for bedrooms where zoned control is a must, the ES 1500 offers whisper quiet operation, guaranteed. This fan can quickly and easily be installed almost anywhere in a ceiling or vertical wall. It comes with a built-in louvered back draft damper to prevent energy loss when the unit is not in use.
Available options include, a “set it and forget it” 8-hour on/off timer, as well as a remote kit for wireless operation.
Quiet Cool Energy Saver Benefits
- Rated “most energy efficient” fan by the California Energy Commission
- Draws fresh cool air in and pushes stale hot air out to naturally to improve the air quality in your home
- Reduces AC usage to cut your utility bills by 50-90%
- Nearly silent operation; suspension installation and acoustic insulated flexible ducting keeps vibration and noise to a minimum
- Compact and easy to install
- Manufactured in the United States
Download the Installation Instructions
Questions – Toll free 1.888.845.6597 or Direct 1.661.775.5979
Installers/Contractors Please call for more information about how the QuietCool Fans can increase your sales to your own customers.
More Info
- Recommended one unit per room
- UL Listed components

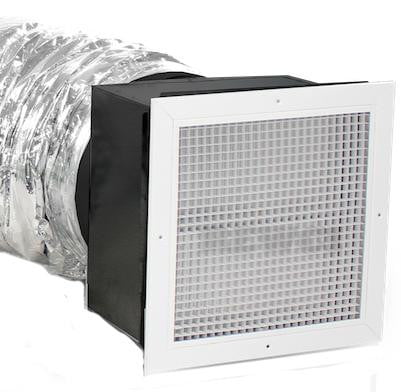

- Horizontal or vertical mount decorative grill included
- Easy installation, no carpentry required
- Available optional electronic timer
- Available optional double stack switch for multiple fan operation from one location
- Available optional remote control
- 10 year warranty
- All parts manufactured in the US
Specifications
| Motor Voltage: | 120 VAC, 60Hz |
| Energy Use: | 64.5 Watts |
| Air Flow @0.1″ SP: | 1434 CFM |
| HVI-916 Airflow (for CA Title 24 New Construction): | 1010 CFM |
| Power Cord Length: | 20′ |
| Duct Diameter: | 14″ |
| Sound level dBA: | 37.2 |
| Duct Length: | 6′ |
| Motor Head Diameter: | 14.5 |
| Motor Head Length: | 13.5 |
| Damper: | Barometric Pressurized R5 Damper |
| Controls: | Remote control or hard wire capabilities |
| Rough Opening: | 14.25 x 14.25 |
| Grill Outside Dimension: | 16 x 16 |
| Intake Grill Color: | White |
Covers up to 717 square feet at 2 CFM per square foot
Requires 1.92 square feet of net attic venting
Download the Installation Instructions
Listen to the ES-1500 Run
