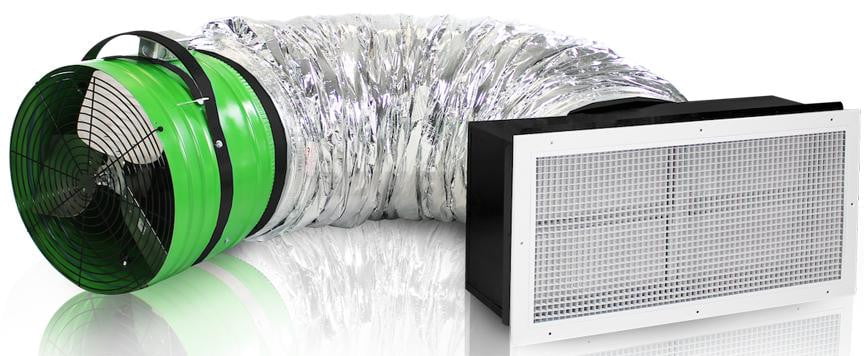

Quiet Cool ES4700 Whole House Fan
The Energy Saver 4700, our super energy efficient Quiet Cool 2 speed whole house fan moves 4195 cubic feet of air per minute on high! This fan can draw in cool air and push hot air out enabling you to cool your living space in minutes.
Suitable for up to 2098 square feet at 2 cfm per square foot.

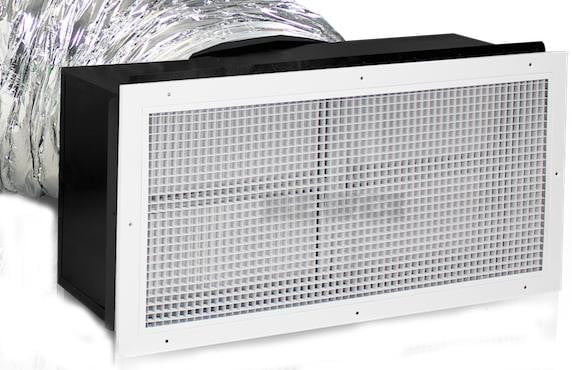

This fan can quickly and easily be installed almost anywhere in a ceiling or vertical wall. It comes with a built-in louvered back draft damper to prevent energy loss when the unit is not in use.
Available control options include an 8-hour on/off timer, as well as a remote kit which allows you to operate the fan wirelessly in your home.
Quiet Cool Energy Saver Benefits
- Rated “most energy efficient” fan by the California Energy Commission
- Draws fresh cool air in and pushes stale hot air out to naturally to improve the air quality in your home
- Reduces AC usage to cut your utility bills by 50-90%
- Nearly silent operation; suspension installation and acoustic insulated flexible ducting keeps vibration and noise to a minimum
- Compact and easy to install
- Manufactured in the United States
Download the Installation Instructions
Questions – Toll free 1.888.845.6597 or Direct 1.661.775.5979
Installers/Contractors Please call for more information about how the QuietCool Fans can increase your sales to your own customers.
More Info
- UL Listed components
- Horizontal or vertical mount decorative grill included
- Available optional double stack switch for multiple fan operation from one location
- Available optional remote control
- 10 year warranty
- All parts manufactured in the US
- The ES-4700 is capable of operating in a two-speed mode. This required a hardwired installation
Specifications
| Motor Voltage: | 120 VAC, 60Hz |
| Energy Use: | 415 Watts High/75 Watts Low |
| Air Flow: | 4195 CFM High/2304 CFM Low |
| HVI-916 Airflow (for CA Title 24 New Construction): | 3080 CFM |
| Sound level dBA: | 47.4 High/33.0 Low |
| Power cord Length: | 20′ |
| Duct Diameter: | 18″ |
| Duct Length: | 9 feet |
| Motor Head Diameter: | 18.5″ |
| Motor Head Length: | 13.5″ |
| Damper: | Barometric Pressurized R5 Dampers |
| Rough Opening: | 14.25 x 30.25 |
| Controls: | Remote control or hard wire capabilities |
| Grill Outside Dimension: | 16 x 32 |
| Intake Grill Color: | White |
Covers up to 2098 square feet
Download the Installation Instructions
Listen to the ES-4700 Run
